一、 概述
本系列電動機具有體積小，力能指標高等特點，適用于中型機床溜板箱快速進給和退刀之用。
二、 型號說明

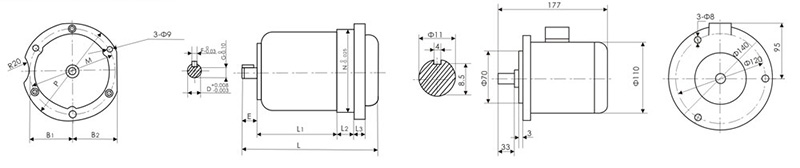

三、 外形及安裝尺寸
| 機座號 | B3 B14 B34 B5 B35 | B14 B34 | |||||||||||||
| A | A/2 | B | C | D | E | F | G | H | K | M | N | P | S | T | |
| 50 | 80 | 40 | 63 | 32 | 9 | 20 | 3 | 7.2 | 50 | 5.8 | 55 | 40 | 70 | M5 | 2.5 |
| 56 | 90 | 45 | 71 | 36 | 56 | 65 | 50 | 80 | |||||||
| 63 | 100 | 50 | 80 | 40 | 11 | 23 | 4 | 8.5 | 63 | 7 | 75 | 60 | 90 | ||
| 71 | 112 | 56 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | 85 | 70 | 105 | M6 | ||
| 80 | 125 | 62.5 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 100 | 80 | 120 | 3 | |
| 90S | 140 | 70 | 56 | 24 | 50 | - 8 | 20 | 90 | 115 | 95 | 140 | M8 | |||
| 90L | 125 | ||||||||||||||
| 機座號 | B5 B35 | B3 B14 B34 B35 B5 | |||||||||
| M | N | P | S | T | AB | AC | AD | AE | HD | L | |
| 50 | - | - | - | - | - | 100 | 110 | 100 | - | 125 | 155 |
| 56 | 120 | 70 | 140 | 8 | 3 | 115 | 120 | 110 | - | 135 | 170 |
| 63 | 115 | 95 | 140 | 10 | 130 | 130 | 125 | 85 | 165 | 230 | |
| 7 1 | 130 | 110 | 160 | 3.5 | 145 | 145 | 140 | 95 | 180 | 255 | |
| 80 | 165 | 130 | 200 | 12 | 160 | 165 | 150 | 110 | 200 | 295 | |
| 90S | 180 | 185 | 160 | 120 | 220 | 370 | |||||
| 90L | 400 | ||||||||||
YS系列三相異步電動機(S2 5min)
| 型號 |
功率 W |
電流 A |
電壓 V |
頻率 Hz |
轉速 r/min |
效率 η |
功率因數 cos Φ |
堵轉轉矩 | 堵轉電流 | 最大轉矩 |
| 額定轉矩 | 額定電流 | 額定轉矩 | ||||||||
| YS5612 | 90 | 1.54/0.89 | 220/380 | 50 | 2800 | 2.2 | 7 | 2.2 | ||
| YS5622 | 120 | 1.70/0.98 | ||||||||
| YS5632-1 | 180 | 1.99/1.15 | ||||||||
| YS5632-2 | 250 | 2.30/1.33 | ||||||||
| YS5632-3 | 370 | 3.64/2.10 | ||||||||
| YS5614 | 6 0 | 1.35/0.78 | 1400 | |||||||
| YS5624 | 9 0 | 1.54/0.89 | ||||||||
| YS5634-1 | 120 | 1.70/0.98 | ||||||||
| YS5634-2 | 180 | 1.99/1.15 | ||||||||
| YS5634-3 | 250 | 2.30/1.33 | ||||||||
| YS5634-4 | 300 | 2.68/1.55 | ||||||||
| YS5634-5 | 320 | 2.68/1.55 | ||||||||
| YS5634-6 | 370 | 3.64/2.10 | ||||||||
| YS5634-7 | 550 | 4.68/2.70 | ||||||||
| YS5634-8 | 750 | 5.54/3.20 | ||||||||
| YS6312 | 180 | 1.99/1.15 | 2800 | |||||||
| YS6322 | 250 | 2.30/1.33 | ||||||||
| YS6332 | 370 | 3.64/2.10 | ||||||||
| YS6342 | 550 | 4.68/2.70 | ||||||||
| YS6314 | 120 | 1.70/0.98 | 1400 | |||||||
| YS6324-1 | 180 | 1.99/1.15 | ||||||||
| YS6324-2 | 200 | 2.17/1.25 | ||||||||
| YS6334 | 250 | 2.30/1.33 | ||||||||
| YS6344 | 370 | 3.64/2.10 | ||||||||
| YS7112 | 370 | 3.64/2.10 | 2800 | |||||||
| YS7122 | 550 | 4.68/2.70 | ||||||||
| YS7132 | 750 | 5.54/3.20 | ||||||||
| YS7142-1 | 1100 | 6.48/3.74 | ||||||||
| YS7142-2 | 1500 | 8.05/4.65 | ||||||||
| YS7114 | 250 | 2.30/1.33 | 1400 | |||||||
| YS7124 | 370 | 3.64/2.10 | ||||||||
| YS7134 | 550 | 4.68/2.70 |
| 型號 |
功率 W |
電流 A |
電壓 V |
頻率 Hz |
轉速 r/min |
效率 η |
功率因數 cos | 堵轉轉矩 | 堵轉電流 | 最大轉矩 |
| 額定轉矩 | 額定電流 | 額定轉矩 | ||||||||
| YS7144 | 750 | 5.54/3.20 | 220/380 | 50 | 1400 | 2.2 | 7 | 2.2 | ||
| YS8012 | 750 | 5.54/3.20 | 2800 | |||||||
| YS8022 | 1100 | 6.48/3.74 | ||||||||
| YS8032 | 1500 | 8.05/4.65 | ||||||||
| YS8014 | 550 | 4.68/2.70 | 1400 | |||||||
| YS8024 | 750 | 5.54/3.20 | ||||||||
| YS8034 | 1100 | 6.48/3.74 | ||||||||
| YS90S-2 | 1500 | 8.05/4.65 | 2800 | |||||||
| YS90L-2 | 2200 | 10.1/5.82 | ||||||||
| YS90S-4 | 1100 | 6.48/3.74 | 1400 | |||||||
| YS90L-4 | 1500 | 8.05/4.65 |
|
型號 |
D |
E |
F |
G |
M |
N |
P |
S |
B1 |
B2 |
L1 |
L2 |
L3 |
L |
|
YSS5634 |
14 |
41 |
4 |
11 |
112 |
100 |
125 |
9 |
53 |
57 |
131 |
19 |
16 |
192 |
|
11 |
17 |
8.5 |
108 |
175 |
||||||||||
|
YSS8034 |
18 |
40 |
5 |
15 |
154 |
138 |
170 |
9 |
|
75 |
135 |
25 |
20 |
276 |
|
YSS90L-4 |
200 |
170 |
229 |
11 |
105 |
105 |
130 |
20 |
10 |
271 |
技術參數
| 型號 |
功率 W |
電流 A |
電壓 V |
頻率 Hz |
同步轉速 r/min |
持續時間 min |
效率 η |
功率因數 COSΦ |
堵轉電流 | 堵轉轉矩 | 最大轉矩 |
| 額定電流 | 額定轉矩 | 額定轉矩 | |||||||||
| YSS5634 | 250 | 1.55 | 380 | 50 | 1400 | 5 | 46.0 | 0.55 | 6 | 2.5 | 2.7 |
| 320 | |||||||||||
| YS5634 | 300 | 0.50 | -- | 60.0 | 0.63 | 6 | 2.4 | 2.4 | |||
| YSS8034 | 1100 | 2.85 | 15% | 73.0 | 0.8 | 6 | 2 | 2 | |||
| YSS90L-4 | 1500 | 3.65 | 25% | 80.0 | 0.82 | 7 | 2.2 | 2.4 |
